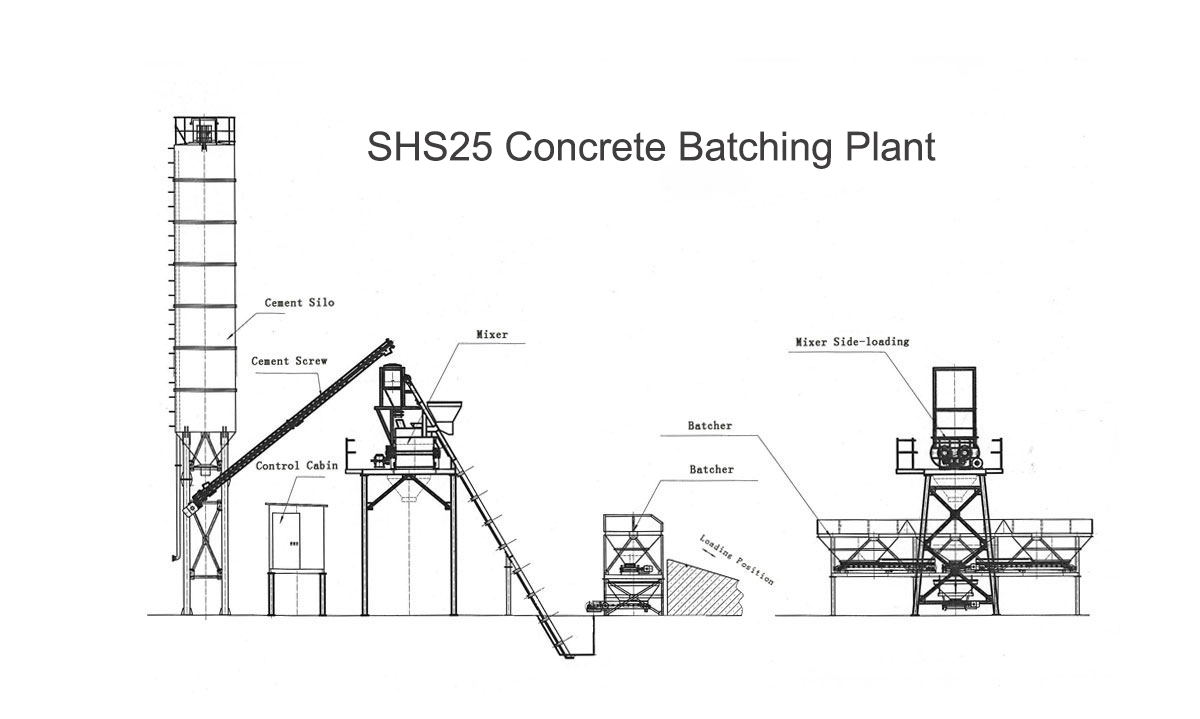

SHS25 stationary concrete batching plant is one of the small-sized series batching plant of SHHM company.It is full-automatic concrete mixing plant which is composed by feeding, batching, mixing, electrical control and steel structure components.It’s suitable for small-scale construction projects, precast yard and commercial concrete companies.
1. International popular modular compact structure
2. Adapt and apply for the most advanced technologies
3. The mixing system with excellent mixing performance
4. Main electrical components from Germany SIEMENS
5. Suitable for small-scale construction project
| Specification | Unit | Value |
|---|---|---|
| Productivity | m3/h | 25 |
|
Capacity of Mixer |
m3 | 0.5 |
|
Discharge Height |
m | 3.8 |
|
Aggregate Bin |
Quantity | 3 |
|
Capacity of Aggregate Bin |
m3 | 4 |
|
Max. Weighing Value of aggregate |
kg | 1500 |
|
Max. Weighing Value of cement |
kg | 300 |
|
Max. Weighing Value of water |
kg | 150 |
|
Max. Weighing Value of additive |
kg | 40 |
| Feeding Type | / | Skip Hopper |
| Cement Silo | / | Optional |
| Cement Screw Conveyor | / | Optional |
| Control Mode | / | Auto/Semi control |
