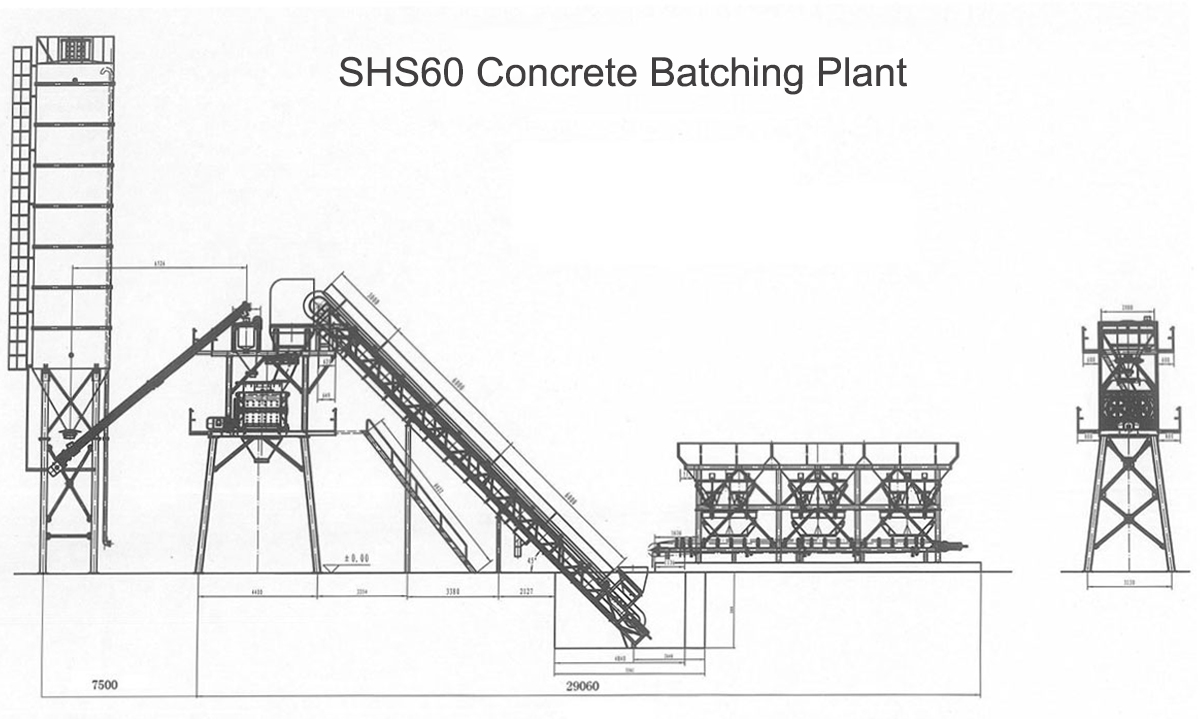

SHS60 Stationary Concrete Batching Plant

Item No.: 00112
Productivity: 60m3/h
Capacity of Mixer: 1.0m3
Discharge Height: 3.8m
Aggregate Bin: 3
Description Parameter
Description

1. Description of SHS60 Concrete Batching Plant:

SHS60 series concrete batching plant belongs to compulsory and efficiency equipment, it can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency, it is widely used large and medium scale building works, road and bridge works and concrete products prefabrication plants, and is an ideal equipment to produce commercial concrete.

2. Short Features of SHS60 Concrete Batching Plant:

1. Adopts modular structure, easy to install and assembly and convenient to transport.

2. The mixing console adopts JS1000 twin shaft compulsory concrete mixer.

3. Measurement of components and control components are importing from USA, Japan, Germany.

4. Computer control system can keep the accuracy and stable measurement performance.

5. Good choice for commercial concrete

Parameter

Specification Unit Value
Productivity m3/h 60

Capacity of Mixer

m3 1

Discharge Height

m 3.8

Aggregate Bin

Quantity 3

Capacity of Aggregate Bin

m3 10

Max. Weighing Value of aggregate

kg 3000

Max. Weighing Value of cement

kg 600

Max. Weighing Value of water

kg 400

Max. Weighing Value of additive

kg 50
Feeding Type / Belt
Cement Silo / Optional
Cement Screw Conveyor / Optional
Control Mode / Auto control
