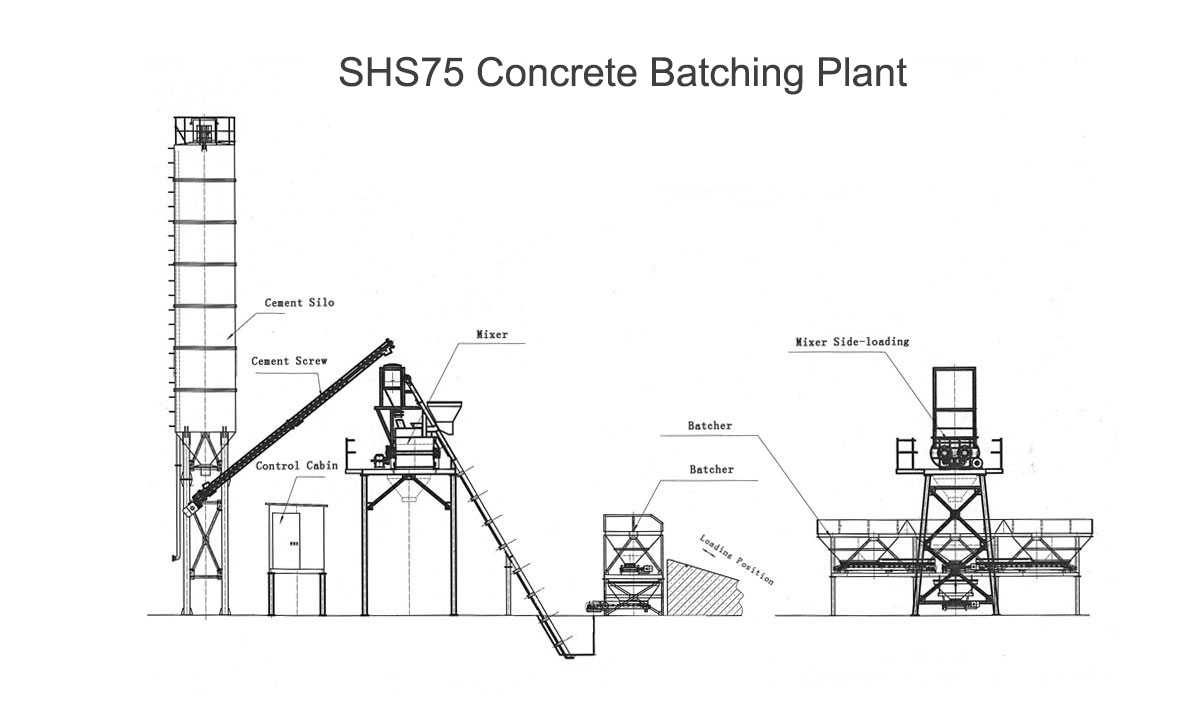

SHS75 Concrete Batching Plant has been widely used in the domestic and abroad, as well as earning a perfect reputation in the construction field.
It adopts the control technology with newest deign concept, for example: electric weighing, computer control, digital display, etc., Electric weighing system has been equipped with buffer device and auto compensation function and high precision measure.
1. Small-scale SHS75 concrete batching plant, which is suitable for small projects, small yards, etc.
2. Concrete mixer features JS1500 twin shaft compulsory concrete mixer.
3. Small occupied area.
4. Easy to install and disassemble and convenient to transport.
5. Less investment, lower noise
| Specification | Unit | Value |
|---|---|---|
| Productivity | m3/h | 75 |
|
Capacity of Mixer |
m3 | 1.5 |
|
Discharge Height |
m | 3.8 |
|
Aggregate Bin |
Quantity | 3 |
|
Capacity of Aggregate Bin |
m3 | 15 |
|
Max. Weighing Value of aggregate |
kg | 6000 |
|
Max. Weighing Value of cement |
kg | 1000 |
|
Max. Weighing Value of water |
kg | 500 |
|
Max. Weighing Value of additive |
kg | 50 |
| Feeding Type | / | Skip Hopper |
| Cement Silo | / | Optional |
| Cement Screw Conveyor | / | Optional |
| Control Mode | / | Auto/Semi control |
