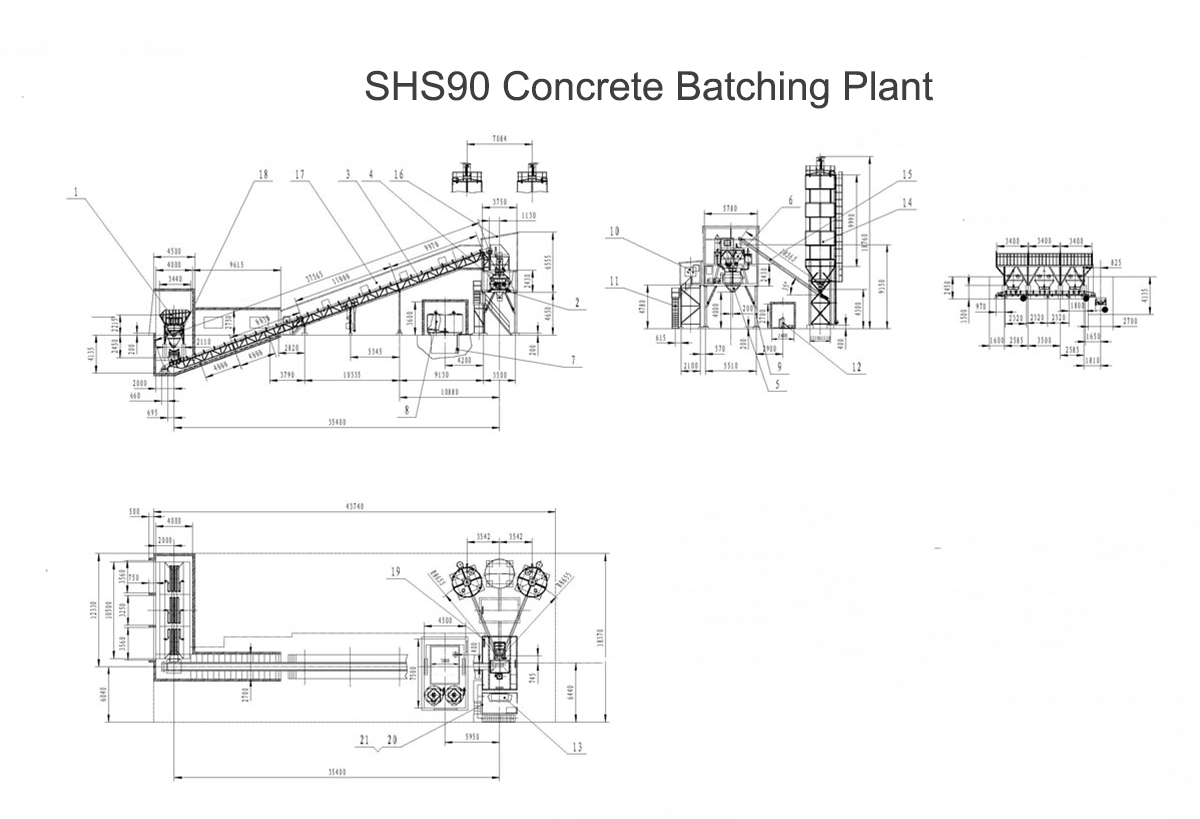

SHS90 Concrete Batching Plant is with modularization structure, the concrete batching plant is easy to transport, install and debug more quickly.The driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
1. Structural members are durable, and most electric elements adopt world famous brands.
2. Suitable for large and medium size projects, dam, road and bridge.
3. Lubrication system is equipped with over voltage warning and low oil level warning, safe and reliable
4. Low noise, low energy consumption
| Specification | Unit | Value |
|---|---|---|
| Productivity | m3/h | 90 |
|
Capacity of Mixer |
m3 | 1.5 |
|
Discharge Height |
m | 3.8 |
|
Aggregate Bin |
Quantity | 4 |
|
Capacity of Aggregate Bin |
m3 | 15 |
|
Max. Weighing Value of aggregate |
kg | 6000 |
|
Max. Weighing Value of cement |
kg | 1000 |
|
Max. Weighing Value of water |
kg | 500 |
|
Max. Weighing Value of additive |
kg | 50 |
| Feeding Type | / | Belt |
| Cement Silo | / | Optional |
| Cement Screw Conveyor | / | Optional |
| Control Mode | / | Auto Control |
